一个Xray终极DNS分流配置

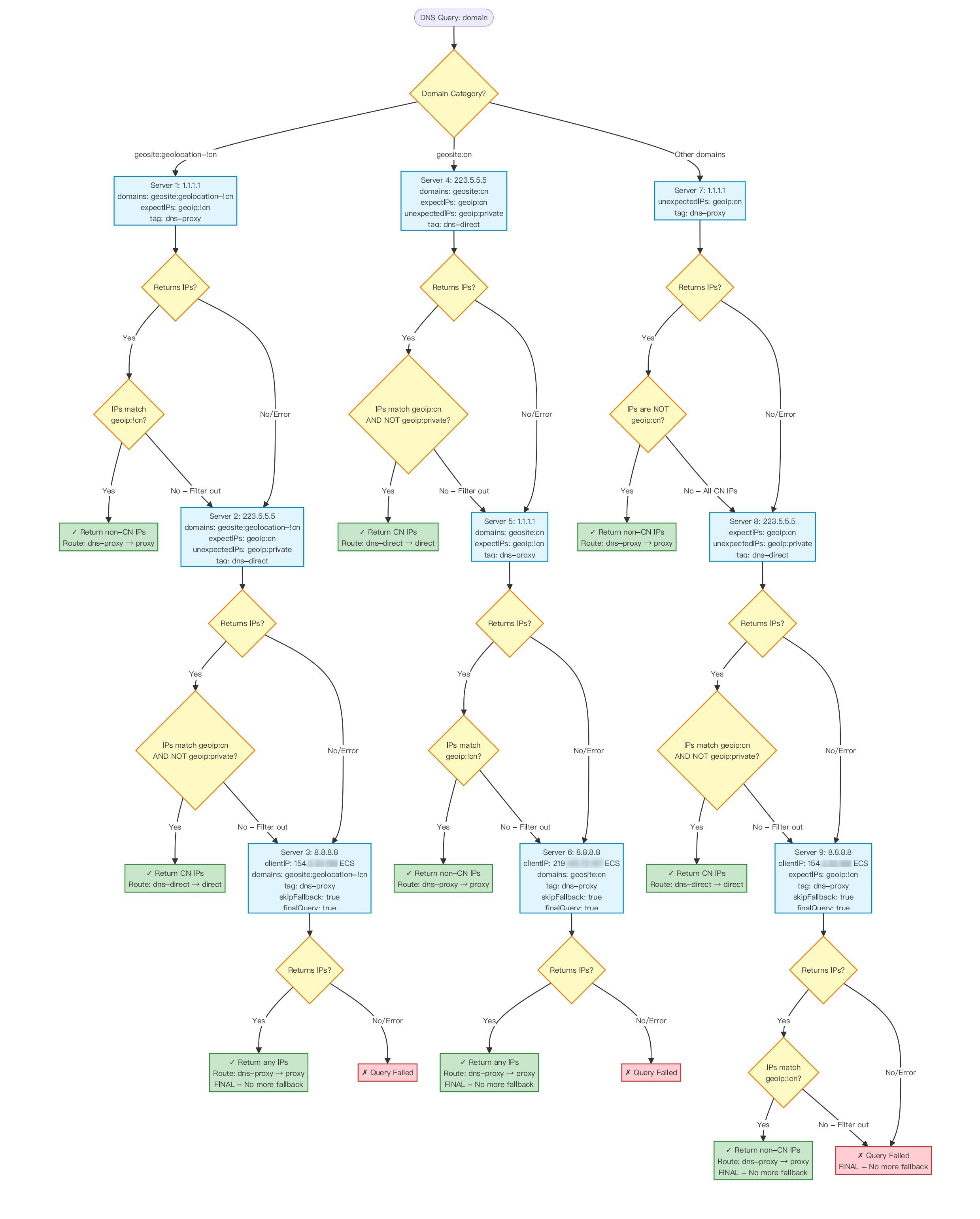

流程图

配置文件

{
  "log": {
    "loglevel": "debug",
    "dnsLog": true,
    "maskAddress": ""
  },
  "dns": {
    "servers": [
      // 非CN预分流：先用1.1.1.1查询，检查是否为非CN IP
      {
        "address": "1.1.1.1",
        "domains": [
          "geosite:geolocation-!cn"
        ],
        "expectIPs": [
          "geoip:!cn"
        ],
        "tag": "dns-proxy",
        "skipFallback": false
      },
      // 非CN预分流失败后fallback：使用223.5.5.5查询，要求CN IP
      {
        "address": "223.5.5.5",
        "domains": [
          "geosite:geolocation-!cn"
        ],
        "expectIPs": [
          "geoip:cn"
        ],
        "tag": "dns-direct",
        "skipFallback": false
      },
      // 非CN预分流最终查询：8.8.8.8带ECS，作为最终查询
      {
        "address": "8.8.8.8",
        "clientIP": "国外ECS",
        // ECS IP，请自行配置
        "domains": [
          "geosite:geolocation-!cn"
        ],
        "tag": "dns-proxy",
        "skipFallback": true,
        "finalQuery": true
      },
      // CN预分流：先用223.5.5.5查询，检查是否为CN IP
      {
        "address": "223.5.5.5",
        "domains": [
          "geosite:cn"
        ],
        "expectIPs": [
          "geoip:cn"
        ],
        "tag": "dns-direct",
        "skipFallback": false
      },
      // CN预分流失败后fallback：使用1.1.1.1查询，要求非CN IP
      {
        "address": "1.1.1.1",
        "domains": [
          "geosite:cn"
        ],
        "expectIPs": [
          "geoip:!cn"
        ],
        "tag": "dns-proxy",
        "skipFallback": false
      },
      // CN预分流最终查询：8.8.8.8带ECS，作为最终查询
      {
        "address": "8.8.8.8",
        "clientIP": "国内ECS",
        // ECS IP，请自行配置
        "domains": [
          "geosite:cn"
        ],
        "tag": "dns-proxy",
        "skipFallback": true,
        "finalQuery": true
      },
      // 预分流失败的域名：优先使用1.1.1.1查询
      {
        "address": "1.1.1.1",
        "unexpectedIPs": [
          "geoip:cn"
        ],
        "tag": "dns-proxy",
        "skipFallback": false
      },
      // 预分流失败的域名fallback：使用223.5.5.5重新查询（当1.1.1.1返回CN IP时）
      {
        "address": "223.5.5.5",
        "expectIPs": [
          "geoip:cn"
        ],
        "tag": "dns-direct",
        "skipFallback": false
      },
      // 预分流失败的域名最终查询：8.8.8.8带ECS（当返回非CN IP时）
      {
        "address": "8.8.8.8",
        "clientIP": "国外ECS",
        "expectIPs": [
          "geoip:!cn"
        ],
        "tag": "dns-proxy",
        "skipFallback": true,
        "finalQuery": true
      }
    ],
    "tag": "dns-proxy",
    "enableParallelQuery": false,
    "disableCache": true,
    "disableFallback": false
  },
  "inbounds": [
    {
      "tag": "dns-in",
      "protocol": "dokodemo-door",
      "port": 1053,
      "settings": {
        "address": "127.0.0.1",
        "port": 53,
        "network": "udp"
      }
    }
  ],
  "outbounds": [
    {
      "protocol": "dns",
      "settings": {
        "nonIPQuery": "skip"
      },
      "tag": "dns-out"
    },
    {
      "tag": "direct",
      "protocol": "freedom",
      "settings": {}
    },
    {
      "tag": "proxy",
      "protocol": "shadowsocks",
      "settings": {
        "servers": [
          {
            "address": "127.0.0.1",
            "port": 10001,
            "method": "2022-blake3-aes-128-gcm",
            "password": "buQ8PWlBCqsBLl7Ql7wVbw=="
          }
        ]
      }
    }
  ],
  "routing": {
    "domainStrategy": "IPOnDemand",
    "rules": [
      {
        "type": "field",
        "network": "tcp,udp",
        "inboundTag": [
          "dns-in"
        ],
        "outboundTag": "dns-out"
      },
      {
        "inboundTag": [
          "dns-direct"
        ],
        "outboundTag": "direct"
      },
      {
        "inboundTag": [
          "dns-proxy"
        ],
        "outboundTag": "proxy"
      }
    ]
  }
}

配置思想

• 预分流CN和非CN，但是由于域名列表是人为维护的，有错误也有滞后性，所以不可能100%准确，需要手动修正
• 修正方式，使用expectIPs进行修正，如果修正失败，则使用带ECS查询进行fallback处理

参考文献

https://xtls.github.io/document/level-1/routing-with-dns.html#利用-xray-core-dns-模块实现精准分流
https://vio.moe/posts/wo-de-dns-pei-zhi-ji-qiao/

PS

默认关闭了DNS缓存，建议上层启用
